To test the loss and volume resistance ratio of insulating oil and others insulating liquid. High frequency inductance heating method which with the features: oil cup non-contact with heating member, homogeneous heating, fast speed, easy to control.
HV6100 Insulating Oil Dielectric Loss Tester

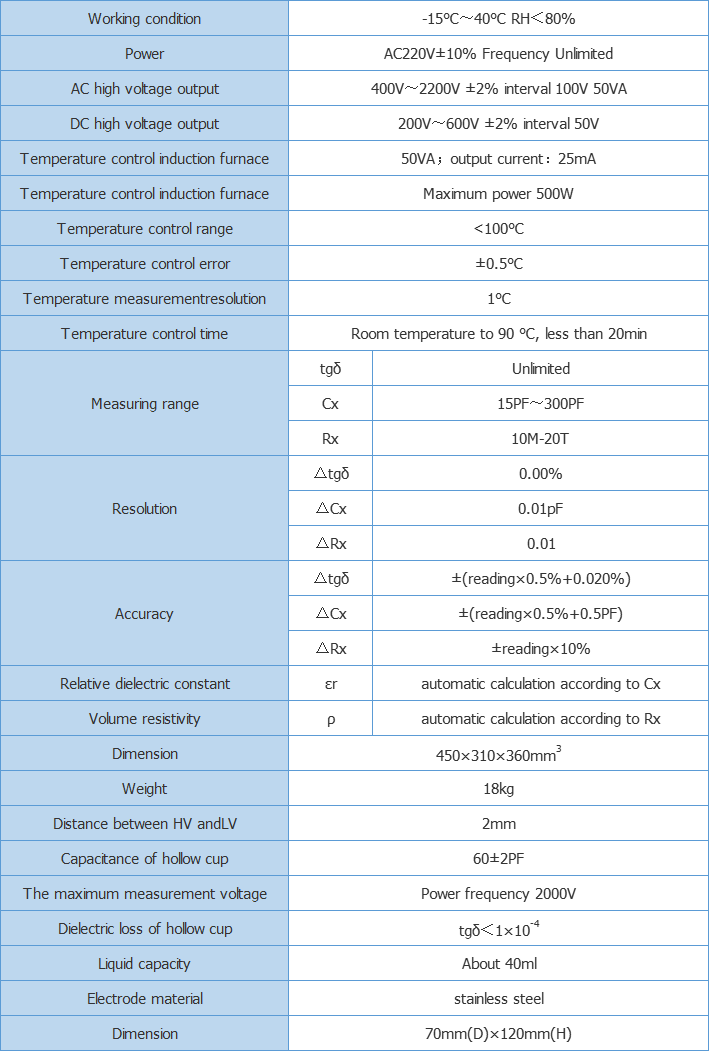

HV6100 insulating oil dielectric tester is high accuracy equipment applies to test the loss and volume resistance ratio of insulating oil and others insulating liquid. It is composed by insulating loss oil cup, temperature controller, temperature sensor, insulating loss testing bridge, AC testing power source, standard capacitor, high-resistance recording, DC HV power, etc. It uses the best advanced high frequency inductance heating method which with the features: oil cup non-contact with heating member, homogeneous heating, fast speed, easy to control. The AV experimental power uses AC-DC-AC conversion mode. The internal standard capacitor is SF6 gas filled three pole capacitor; it is difficult effected by temperature, humidity, to ensure the device in accuracy after used for long time.
1.The device adopts digital technique, intelligent and automatically test.
2. Equipped with 320x240 LCD display.
3. Can print the test results, the operators can skillful use without vocational training.
1. When can I get the price?
We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.
2. What about the delivery time for production?
Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.
3. What is your payment terms?
We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.
4. How much will the Shipping cost and time be?
This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.
5. Could you please tell me the Warranty Period of your product?
Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.
6. Do you have Technical Backup to all customers from different countries?
To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
