HV-6001 Transformer Oil Chromatography Online Monitoring System

Can simultaneously detect seven fault characteristic gases in transformer oil, namely hydrogen (H2), carbon monoxide (CO), methane (CH4), carbon dioxide (CO2), ethylene (C2H4), ethylene Alkane (C2H6), acetylene (C2H2)

Share:
Inquire Now

Product Description

HV-6001 Transformer Oil Chromatography Online Monitoring System



. Introduction


    This oil chromatography online analysis device system can simultaneously detect seven fault characteristic gases in transformer oil, namely hydrogen (H2), carbon monoxide (CO), methane (CH4), carbon dioxide (CO2), ethylene (C2H4), ethylene Alkane (C2H6), acetylene (C2H2); in addition, the detection of micro-water in oil can be added according to user needs.


    The oil chromatography online detection system consists of three parts. Power module, degassing module, analysis and detection module. The degassing module is directly connected to the transformer body or the oil return pipeline through the oil pump, and the transformer oil is introduced into the degassing module. A characteristic gas is separated for monitoring; the power module supplies power to the entire device. The online monitoring system sends the collected data to the system analysis management software through 485 bus or TCP/IP for analysis.


    The default sampling period recommended by the online oil chromatography analysis device is once every 12 hours. The user can reset the sampling period of the system through the main control computer according to the operation of the transformer.


    The diagnostic analysis software is 64-bit Windows software, and the operating environment is Win7 or above. The administrator does not need to perform daily operations on the main control computer and instrument, and can automatically complete data acquisition to realize trend and gain analysis of faulty gas data; automatically generate daily data. Reports, historical data reports; with data trend curves.

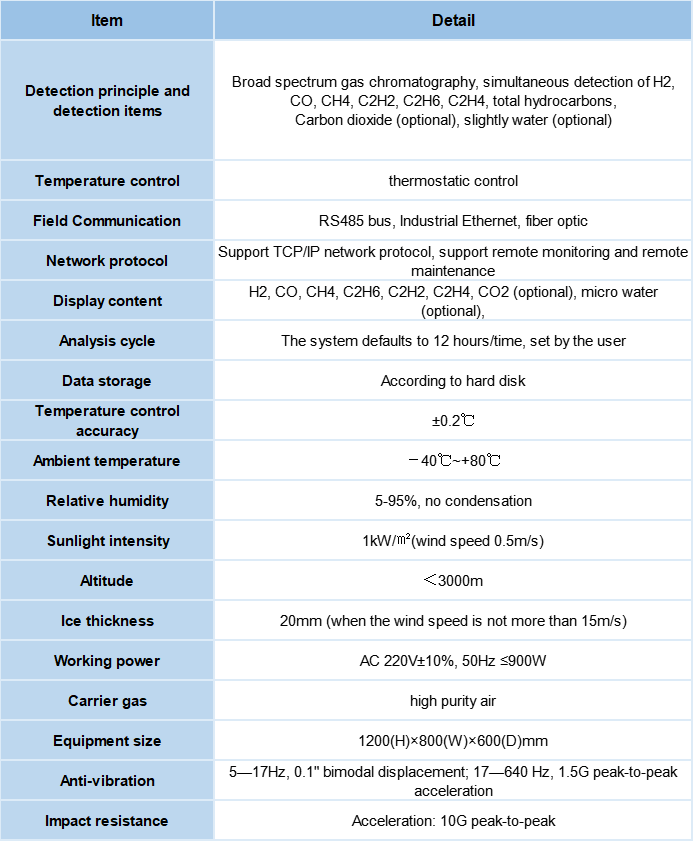

Ⅱ. Technical Parameter






Ⅲ. Standard Configuration


          a. 1 set of oil chromatography online monitoring equipment

          b. 1 set of analysis software

          c. 1 set of instruction manual

          d. Industrial computer (industrial computer integrated computer)

          e. Transformer oil circuit connection flange 2 pcs

          f. Communication cable between oil chromatography online monitoring equipment and main control computer

          g. Oil pipeline

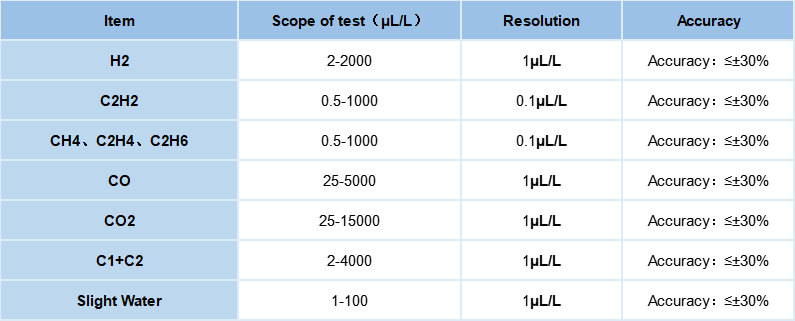

Ⅳ. Measuring Range





FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
