HVTFW PD-free AC Series Resonant Test System

(Different capacity and voltage can be customized)

Ⅰ Introduction

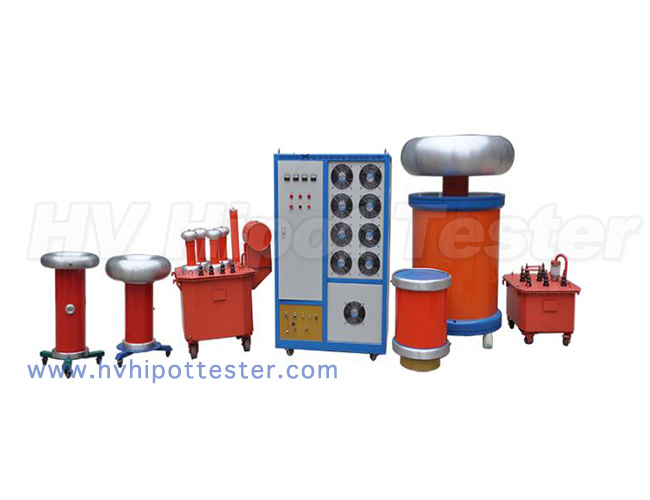

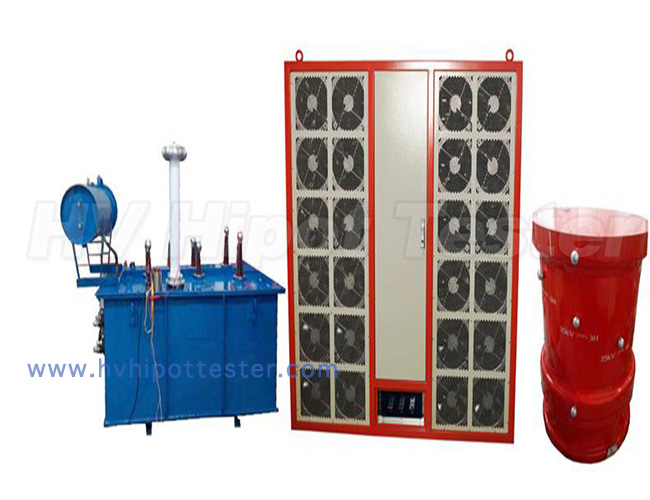

Example: HVTFW-225KVA/25KV PD-free AC Series Resonant Test System

PD-free AC withstand voltage test device is suitable for AC withstand voltage test of transformers, circuit breakers, switches, GIS systems, cables, bushings, insulators and other equipment.

Working Environment：

Environmental temperature: -10℃ to 50℃

Related humidity: ≤ 90% RH

Altitude: ≤ 1km

Ⅱ Technical Data & Functions

1. Rated capacity: 225kVA

2. Input power supply: Single phase 380V; 50Hz

3. Rated voltage: 25kV

4. Rated current: 9A

5. Working Frequency: Power frequency 50Hz

6. Output voltage Waveform distortion rate: ≤0.5%

7. Working time: continuous working of 15min under rated load.

8. Temperature rise: ≤65K after continuous working of 15min under rated load

9. Quality factor: Q ≥10

10. Accuracy: 1.5% (RMS)

11. Protective function: over-current, over-voltage and flashover protections for test object.

12. Partial discharge amount: ≤5PC

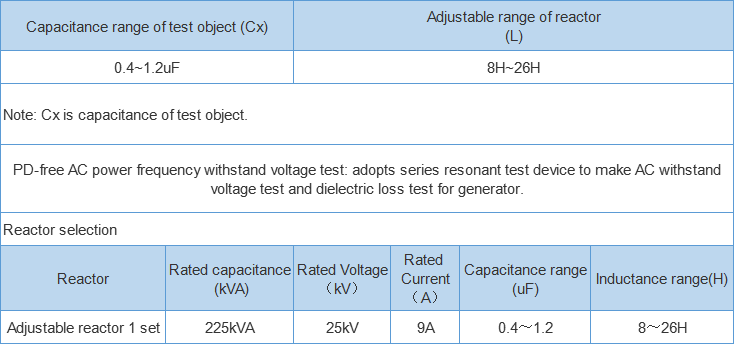

Ⅲ Test Power Supply, L and Cx Relationship Table

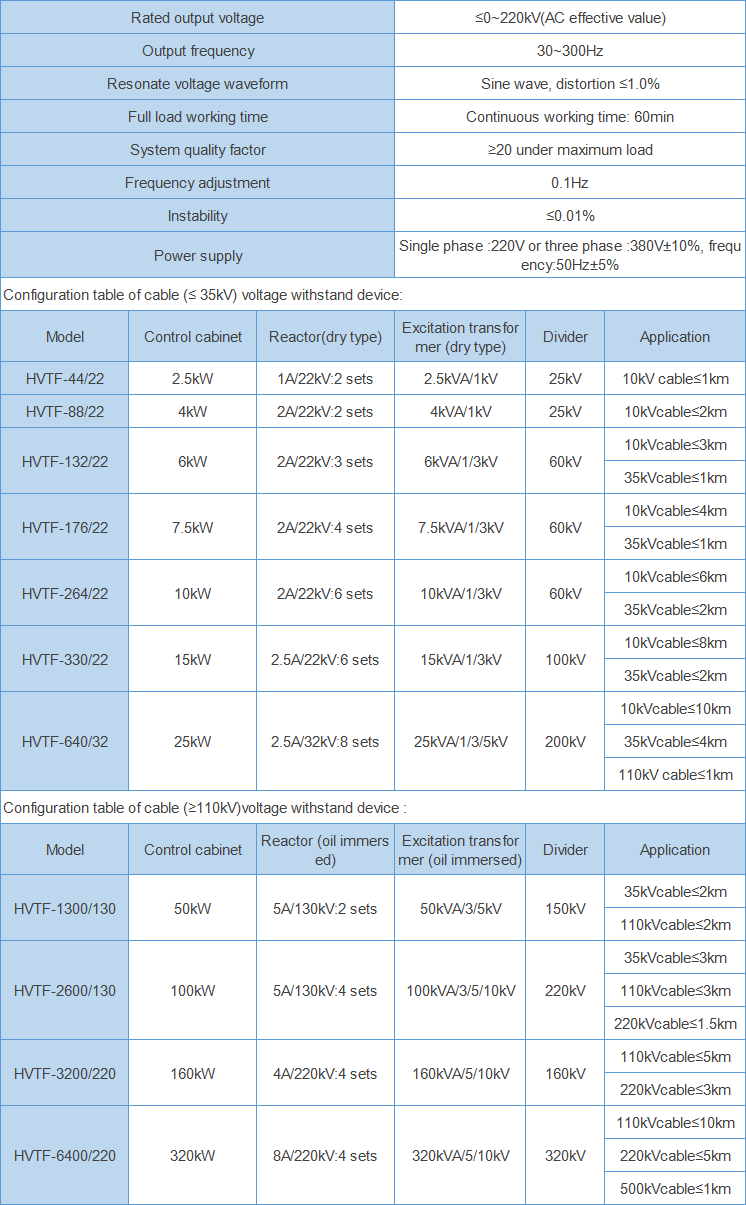

Ⅳ Below capacity and voltage also available:

System Configuration

1. PD-free Excitation Transformer  HVJL-27kVA/3kV/0.4kV (1 set)

2. PD-free Insulation Transformer HVGL-27kVA/380V/380kV  (1 set)

3. PD-free Resonance Control Unit HVTFW-27kVA/380V (Including voltage regulator) (1 set)

4. PD-free Adjustable Reactor HVDK-225kVA/25kV (1 set)

5. PD-free Capacitive Voltage Divider HVFR-30kV (1 set)

6.

System Configuration

1.PD-free Excitation Transformer  HVJL-27kVA/3kV/0.4kV (1 set)

2.PD-free Insulation Transformer HVGL-27kVA/380V/380kV  (1 set)

3.PD-free Resonance Control Unit HVTFW-27kVA/380V (Including voltage regulator) (1 set)

4.PD-free Adjustable Reactor HVDK-225kVA/25kV (1 set)

5.PD-free Capacitive Voltage Divider HVFR-30kV (1 set)

Partial Discharge Test Device:
