HVBT-911 Battery Tester, Battery Internal Resistance Tester, Battery Impedance Tester

Touch-screen. Evaluate and maintain stationary power system including UPS. Accurate testing of resistance and voltage gives indication of battery capacity and technical status. Data can be read on the instrument or on PC. Analyzing software.

Share:
Inquire Now

Product Description

HVBT-911 Battery Tester, Battery Internal Resistance Tester, Battery Impedance Tester



Ⅰ Introduction

HVBT-911 is a new generation of battery tester with touch-screen. It is strictly designed to evaluate and maintain all stationary power systems including Uninterruptible Power System.
Via accurate testing of resistance and voltage, it gives an indication of battery capacity and technical status. The measurement data can be read on the instrument display directly. And it can also be uploaded to PC simply by using the USB drive. With the analyzing software, you could not only keep a record of the testing result but also have detailed analyzing for the status of batteries in different testing conditions.


Product, Video,News, Project,please kindly click below to view:

Product:HVBT-911 Battery Tester

Tutorial Video Of HVBT-911 Battery Tester

News:HVBT-911 Battery Tester

PROJECT: HVBT-911 Battery Tester



Ⅱ Features

1.Wide test range: 5~6000Ah, compatible for single cell of 2V, 6V and 12V
2.Smart and portable hand-held device, rugged and easy-to-go
3.Colorful touch screen with optional operations of keyboard
4.Simultaneously test for voltage, resistance and estimated capacity of batteries
5.Online measurement, no need to remove battery and string from its system for testing, safe and convenient
6.Fast testing for battery and string in seconds with testing data auto saving
7.Strong anti-interference in high current with stable and accurate performance
8.Testing frequency lower than10 Hz, effectively avoid interference from capacitive resistance of battery itself
9.Direct USB drive for software update and data transfer to PC for further analyzing
10.Powerful PC management software, convenient for data storage and analyzing
11.Big memory for testing data storage of more than 3000 cells
12.Buzzer Alarm Function and over voltage protection, secure to use
13.Auto-calibration function before testing, enhancing the testing accuracy
14.Retest and compensation function: any faulty operation or omission could be retested simply with one click
15.Referenced data inside memory for the comparison of your test, and self-defined reference values are available

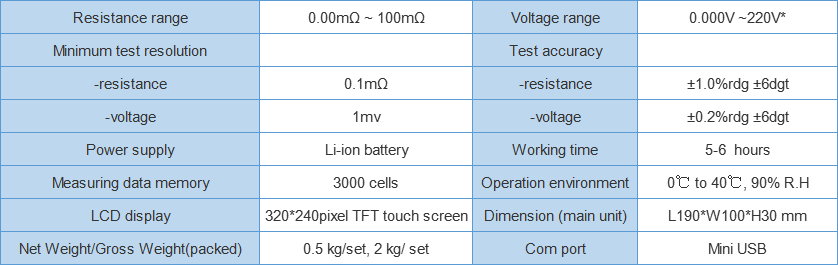

Ⅲ Parameters




More Options:



FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
