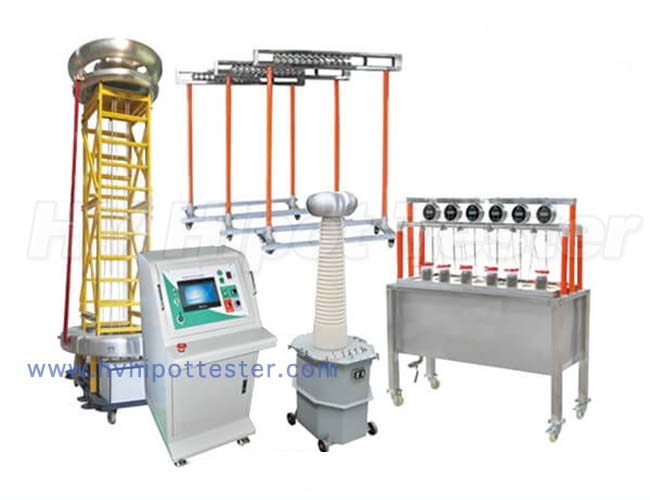

HVST Safety Tools AC Insulation Test Set

Test insulation performance for insulation gloves, boots, mats, hats, rod( 6-110kV), electroscope(6-110kV) etc

Share:
Inquire Now

Product Description

HVST Safety Tools AC Insulation Test Set/ AC Withstand Voltage Test Set/ AC Dielectric Test Set


Ⅰ Application

Test insulation performance for insulation gloves, boots, mats, hats, rod( 6-110kV), electroscope(6-110kV) etc


Ⅱ Main Features

HV source is oil immersed type testing transformer.(dry type and SF6 gas type for option.

7inch LCD touch screen

HV Voltage, LV voltage, LV current measured at the same time

PLC automation control unit, Control unit and HV unit are separate, to ensure safety.

With anti-interference ability, suitable for electromagnetic environment.

Store up to 8000pcs data in 3months. It has USB port to upload data to USB disk.

When setting voltage is arrived, it will timing automatically. After timing, voltage will be back to zero. If there is breakdown or over limits, the HV output will be cut off automatically and alarm.

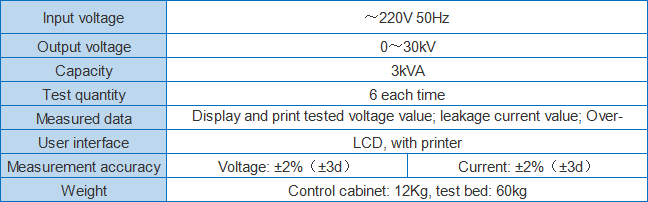

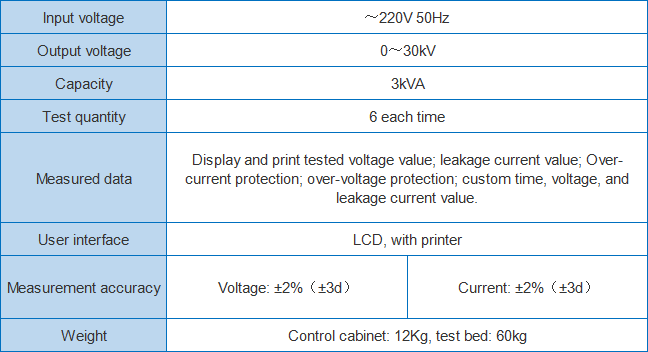

Ⅲ Parameters

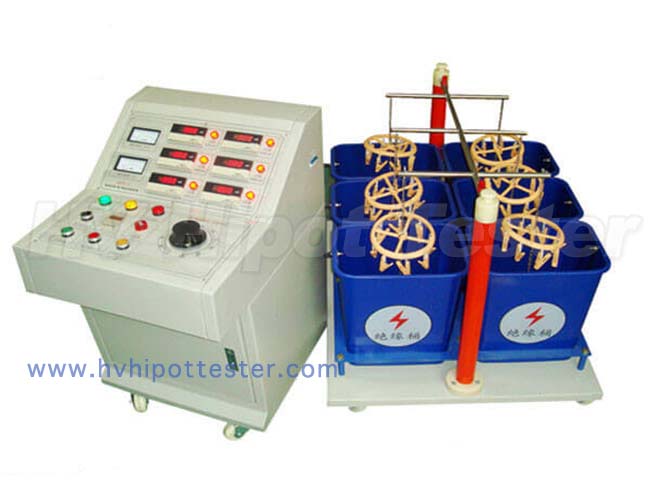

HVST-Z

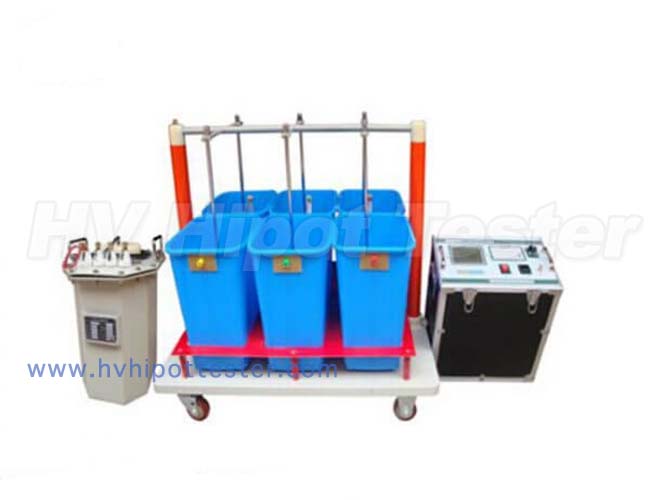

HVST-S



Features

Fast test speed, improve the efficiency.

Voltage withstand, HV,LV leakage current direct reading, auto identify unqualified measured equipment, high degree of intelligence.

Simultaneously test three pairs of insulating boots (gloves), read out leakage currents of each boot (glove), accurately determine unqualified insulating boots (gloves).

Having casters at the bottom of structure make it move freely.


The OTHER electrode devices as below:


1583643072557304.jpg    1583643086489400.jpg

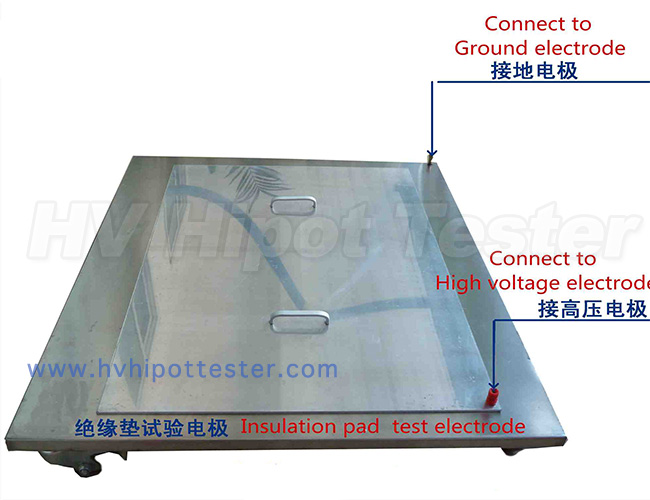

HVST-D Insulation pad insulation separator test electrode

Electrode for withstand voltage and leak test of Insulation Mat & Blanket.


Technical Description

1 Use: non-fixed placement,

2 Altitude: not less than 2000m

3 Environment Temperature:Highest temperature:+40 ° C, Lowest temperature -25 ° C

4 Maximum wind speed: no more than 34 m/s (equivalent to wind pressure 700Pa)

5 Earthquake intensity 8 degrees

6 Environment relative humidity (at 25 ° C) less than 90%

7 System rated voltage: no limit

8 Upper electrode: 600 × 800mm (high voltage electrode)

9 Lower electrode: 800 × 1000mm (ground electrode)



Insulation rod stand to make withstand voltage and leak test for insulation rod.

Remark: If making test for 220kV and above insulation rod, motorized lifting electrode of insulation rod is suggested.

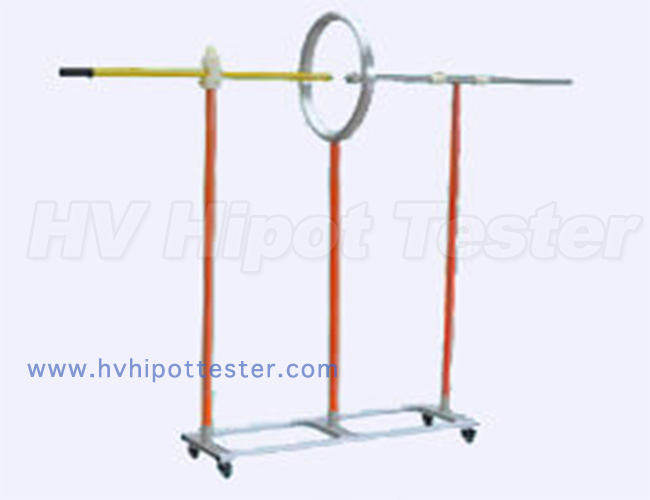

Electroscope testing device to make start voltage, in-phase, out-phase interference test for electroscope.

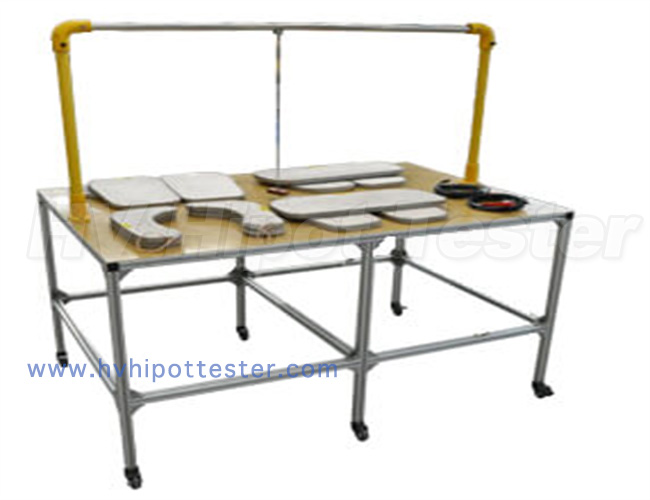

Electrode for insulation Rope  &  Insulation Clothes
