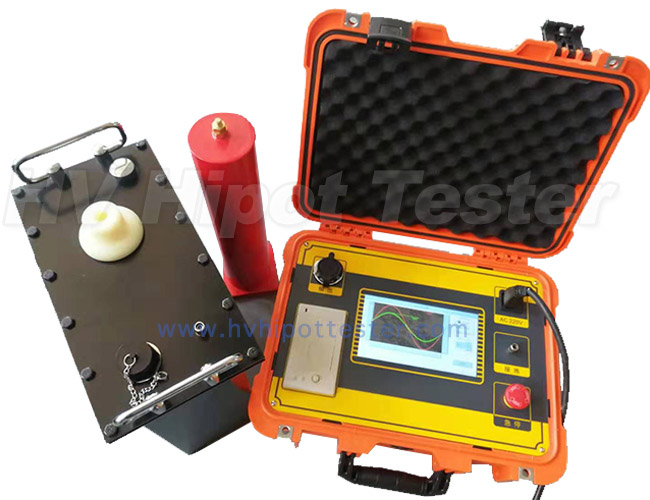

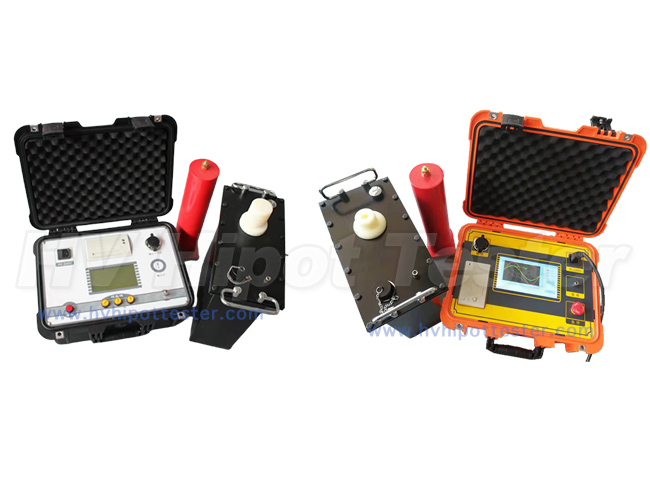

HVVLF Hipot Test Set, Integrated VLF, VLF with Tan Delta

Multi-purpose, can simultaneously measure tested objects capacitance, insulation resistance, leakage current, and AC withstand voltage test

Share:
Inquire Now

Product Description

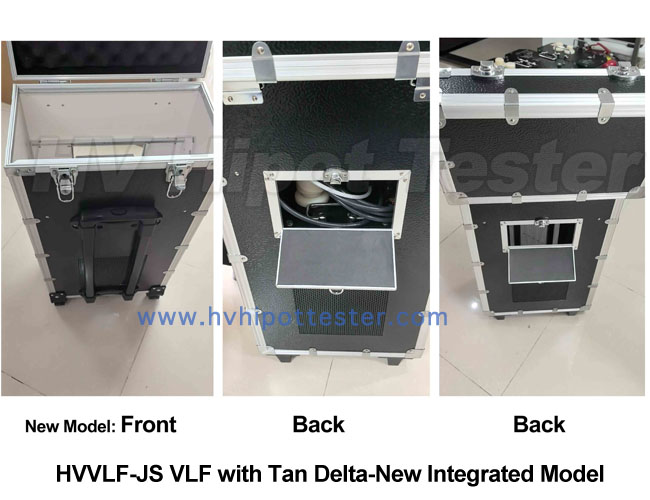

HVVLF Hipot Test Set, Integrated VLF, VLF with Tan Delta


Ⅰ Introduction

It is designed and manufactured for electrical voltage 10kV, 35kV, 300MW thermal power machine, 10kV, 35kV power transformers and lines etc. all electrical main equipment withstand voltage test. Very low frequency withstand voltage test is essentially an alternative of power frequency withstand voltage test. We know that when do power frequency withstand voltage test of large generators, cables etc., because of their insulating layer with large capacity, need large-capacity test transformer or resonant transformer. These devices, not only bulky, high cost, and very inconvenient. To solve this problem, power sector uses the 0.1Hz ultra-low frequency HV generator test device, reduce the test frequency to reduce the capacity of the test power, thus greatly simplifying field testing difficulty. From home and abroad for many years theories and practices have proved that with 0.1Hz ultra-low frequency withstand voltage test replace power frequency withstand voltage test, not only have the same equivalence, and the volume of the device is greatly reduced, greatly reduced weight, theoretical capacity is about one five-hundredth of power frequency.


 More information:

Project, News, Video,please kindly click the letters to view:

Product: HVVLF Hipot Test Set

Tutorial Video Of How To Use HVVLF 80KV VLF Hipot Test Setv

News:  80KV VLF Hipot Test Has Been Sent To Our Customer

PROJECT:80KV VLF Hipot Test


Ⅱ Features

1.Data of current, voltage, wave form can be directly sampled at high voltage side, so the data is real and accurate.
2. Overvoltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself; the actuation time is less than 15ms.
3. Overcorrect protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 15ms.
4. A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.
5. As a result of high and low voltage closed-loop negative feedback control circuit, the output without capacitive rise effect.
6. High-voltage control part adopts innovative light control HV switching unit, control is accurate, safe and reliable;
7. With color man-machine interface touch control plus controls modular software operating system, precise and intuitive
8. Multi-purpose, can simultaneously measure tested objects capacitance, insulation resistance, leakage current, and AC withstand voltage test

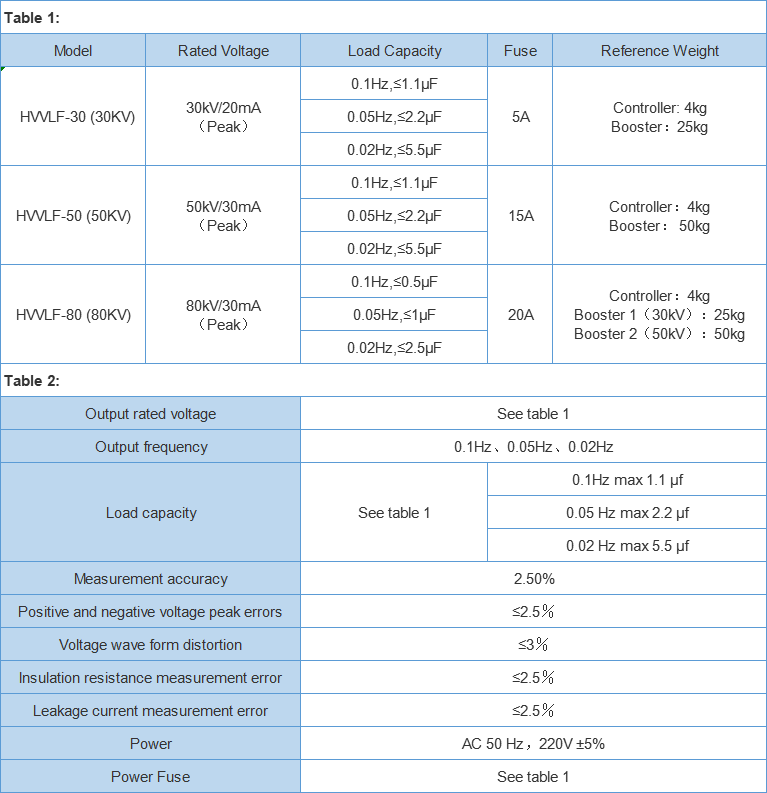

Ⅲ Parameters


Accessory:




FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
