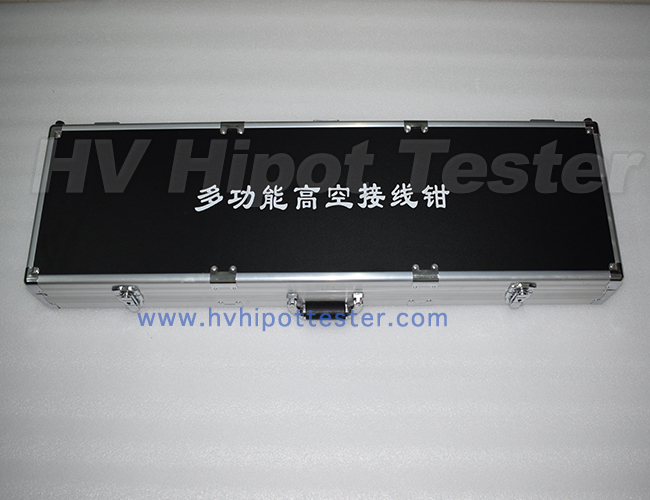

HVAWP Multifunctional Aerial Wiring Pliers

Use the special operating lever to hang the upper jaw of the wiring pliers at the position to be wired, and push and pull the special operating lever to make the jaws open and close freely to complete the wiring work

Share:
Inquire Now

Product Description

HVAWP Multifunctional Aerial Wiring Pliers



Ⅰ. Main Features

1. Simple operation. Use the special operating lever to hang the upper jaw of the wiring pliers at the position to be wired, and push and pull the special operating lever to make the jaws open and close freely to complete the wiring work. The opening size of the wire clamp is large (70mm), and it is equipped with a guiding mechanism, which is very convenient to hang the card.

2. Large clamping force. The principle of labor-saving movable pulley is used between the upper and lower jaws of the wiring pliers, and a larger clamping force can be obtained by using a smaller pulling force.

3. There is a clamping force locking and releasing device inside the wire clamp. When the special operating lever is pulled, the elastic energy storage device in the pliers can automatically lock the jaws at any required force. If the special operating lever is not pushed, the self-locking device will never open automatically. When the special operating lever is pushed, the release device in the pliers can open the clamped jaws, which is very convenient to operate.

4. Good contact. The wire clamp has the function of overcoming the oxide film while clamping, which ensures good contact between the jaw and the wiring position and accurate test data.

5. The short-term energization current is greater than 200A, and the overload capacity is strong.

6. Strong practicability. The angle of the clamp head of the wire clamp can be changed, and it can complete the test of different angles, different thicknesses, different diameters, and heights of less than 8 meters in the wiring position or the wiring work of maintenance and grounding.

7. The weight of the clamp head is less than 700 grams. Light weight, easy to use, reasonable structure design, fine texture, durable.



. How to use

1. Install the wiring pliers on the special operating rod of the required length, install the voltage and current wires on the terminals of the jaws of the wiring pliers, and then segment the wires (the section close to the wiring pliers must be reserved for 20cm margin), fixed on the dedicated operating lever.

2. Adjust the clamp head of the wire clamp to approximately the same angle as the connection position.

3. Use the special operating lever to lift the wire clamp so that the clamp head is slightly higher than the wire position and gently lean on the wire position, rely on the guide mechanism on the wire clamp to slowly slide down on the wire position so that the jaw is stuck on the wire position, and then slowly (do not use too much force) pull the special operating lever, and the jaws will be clamped.

4. When removing the wire clamp, just push the special operating lever upwards in the direction of the wire clamp, and the jaws can be opened. Then move the jaws away from the wiring position and place it on the ground gently (do not drop it violently).



. Attentions

1. Please read the manual carefully before use.

2. Keep a safe distance from live equipment when using it!

When using the wire clamp, there are wires connected. When lifting or lowering, keep a safe distance from the surrounding live equipment, and special attention must be paid to safety!

3. If the jaw is clamped on the screw, the clamping force is small or the connection wire is in poor contact, it will affect the test result.

4. When removing it after use, be sure to place it on the ground with care, and do not drop it violently.

5. Do not push the lower jaw of the wiring pliers upwards, bend or squeeze the inner wire rope.

6. Pay attention to adding lubricating oil to the sliding parts and avoid entering dust.

7. After use, it should be stored in a clean and dry place.




FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
