HV-31C Earth Resistance Soil Resistivity Tester

Ⅰ Introduction

HV-31C Earth Resistance Soil Resistivity Tester is specially designed and manufactured for on-site measurement of earth resistance, soil resistivity, earth voltage, AC voltage. Apply digital processing technology, precision 4-wire method, 3-wire method and simple 2-wire method to measure grounding resistance;

Adopt FFT (fast Fourier transform) technology, AFC (automatic frequency control) technology, automatic identification of interference and selection of measurement frequency, to minimize the impact of interference, provide more accurate earth resistance value. With unique anti-interference ability and environmental adaptability, high repeated test consistency, ensuring high precision, high stability and high reliability for long-term measurement.

The tester case is made of waterproof protection box, anti-collision, anti-drop, waterproof (protection grade IP65), strong and durable, and also equipped with a large-capacity rechargeable lithium battery pack, especially suitable for outdoor construction.

Widely used in power, telecommunications, meteorology, oil fields, construction, lightning protection and industrial electrical equipment, such as grounding resistance, soil resistivity, grounding voltage, AC voltage.

 HV-31C Earth Resistance Soil Resistivity Tester is composed of host machine, monitoring software, testing wires, auxiliary ground pillars, communication wires etc. The large LCD display of host machine, with white backlight and bar graph indicating that can be seen clearly. At the same time it can store 300 sets of data, fulfilling historical inquiry and online real-time monitoring through monitoring software, dynamic display, alarm indicator, and with the functions as historical data access, reading, preservation, report forms, printing and so on.

HV-31C Earth Resistance Soil Resistivity Tester also named: Precision Earth Resistance Tester, 4-pole Earth Resistance Tester, 2/3/4-pole Earth Resistance Tester, Soil Resistivity Tester.

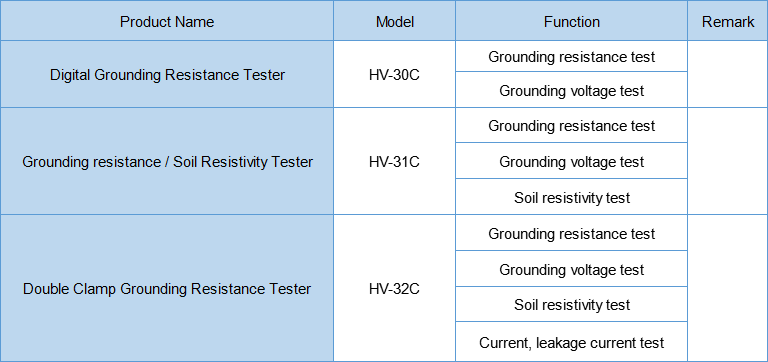

Model Category

Ⅱ Technical Specifications

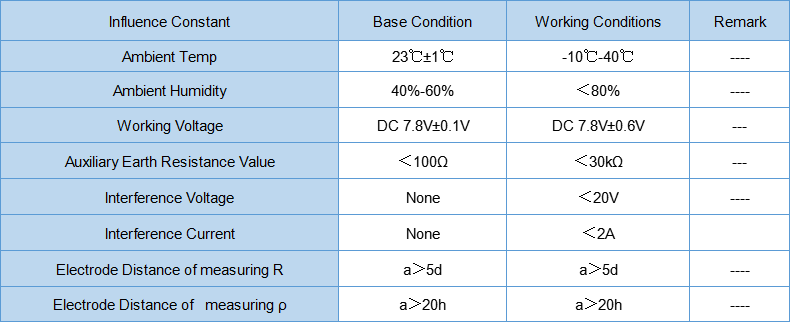

2.1. Base Conditions and Working Conditions

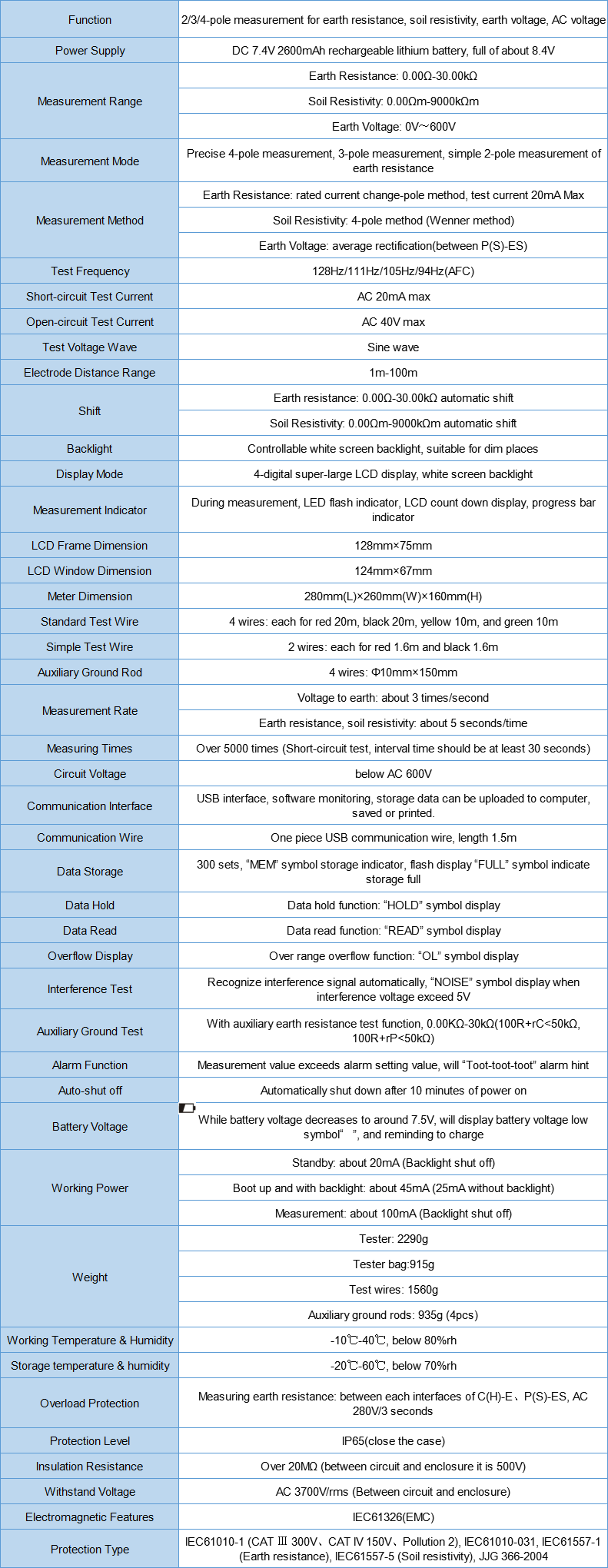

2.2. General Specification

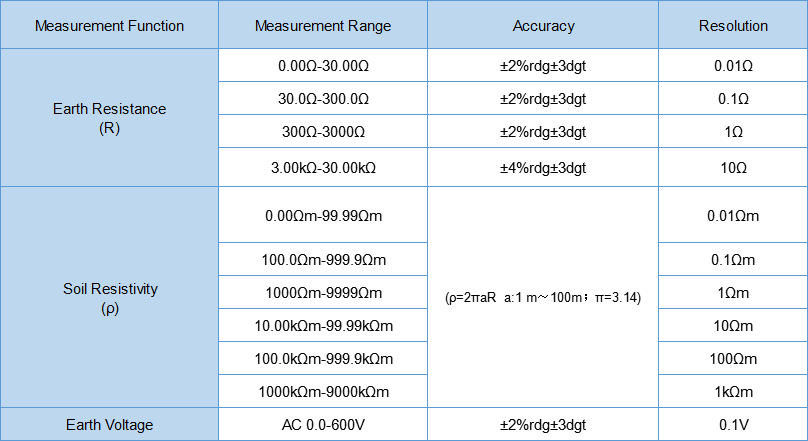

2.3. Intrinsic error and performance indicators under base conditions

Note: 1. rC max or rP max, additional error≤±3%rdg±5dgt.

(rC max: 4kΩ+100R＜50kΩ, rP max: 4kΩ+100R＜50kΩ)

 2. Interference voltage with 5V, additional error≤±5%rdg±5dgt.

 Warning: Voltage measurement is strictly prohibited when the instrument is charged, connected to a computer, or supplied with external power

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
