HVCVT AC Resonant Dielectric Test System for CVT

Adjustable resonance device for field calibration of capacitive voltage transformers up to 500kV

Share:
Inquire Now

Product Description

HVCVT AC Resonant Dielectric Test System for CVT



Ⅰ Introduction

Capacitive voltage transformer (CVT) in calibration, the test must be conducted under the condition of 50Hz frequency, complex geographical condition on site at the same time, the traditional experiment device is difficult to meet the requirements of on-site handling, testing, series resonance booster device is first used in domestic field tunable resonance device, has been widely used in domestic 500 kv and below the field calibration of capacitor voltage transformer.

product names:Resonant booster for CVT inspection, frequency conversion booster, frequency conversion Series booster, Series resonance transformer, Series resonance transformer, transformer calibration Series resonance booster, Series resonance test equipment, Series resonance booster



Ⅱ Features

1. Capacitance needed is small: Due to full compensation of resonant reactive power, the power of power supply and equipment is less than 1/10 of the required capacity of the subject (1/Q>10). Small size and light weight with the same capacity, large output capacity of the device and small power capacity required, cheap, convenient and safe to use;

2. Good waveform output: Current filtering circuit of Series resonance makes the current passing through the subject as fundamental current, whose waveform distortion rate (THD) of the output voltage is very small, superior to all existing ac voltage withstand equipment.

3.1. Perfect Protection Function to tested object: The short circuit current of the sample after flashover or breakdown is only less than 1/10 (1/Q) of the test current before short circuit, which can effectively prevent the expansion of damage to the fault point after breakdown;

3.2. Perfect Protection Function to instrument and people: After flashover, the arc will be automatically extinguished immediately. The long (number of seconds) process of restoring resonant state voltage after arc quenching is a steady-state establishment process, and there is no danger of voltage overshoot and no danger of restoring overvoltage in microsecond millisecond transient process.

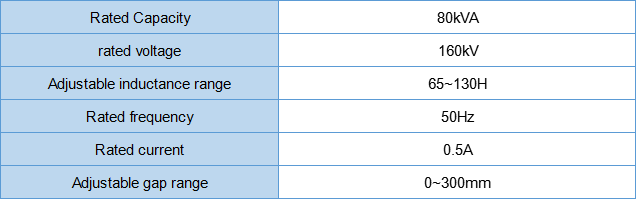

Ⅲ Parameter




FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
