HVSFG-V Precision SF6 Gas Leak Detector

using Germany sensor, adopts infrared dual wave measurement technology, the measurement results more accurate, the stability is better. SF6 gas leak detector is suitable for the power supply department of maintenance units and power test installation.

Share:
Inquire Now

Product Description

HVSFG-V Precision SF6 Gas Leak Detector



Ⅰ Introduction

HVSFG-V high precision SF6 gas leak detector using Germany sensor, adopts infrared dual wave measurement technology, the measurement results more accurate, the stability is better. SF6 gas leak detector is suitable for the power supply department of maintenance units and power test installation.


Ⅱ Features

  1.  Small in volume, light in weight: to make the utmost possible effort to use the lightweight materials, easy to transport and carry.

  2.  Long measurement wire, can test the leakage point of 6M high, with wide moving range.

  3.  High sensitivity: use perfect designed circuit, reduces the interference by noise and electromagnetic wave, improve the sensitivity.

  4.  Wide measurement range, multi gears switching: can choose and switch multi gears, and get the standard curve for each gear, quantitative and qualitative tests are available.

  5.  High accuracy: uses advanced measurement methods, get the high accuracy calibration curve, improve the credibility and accuracy of the test results.

  6.  Visual display, sound and light alarm: with indicating instrument, if with SF6, the sound and light alarm will work.

  7.  Fast response, short recovery time: adopts new circuit structure, fast response, and short recovery time, greatly convenient to field tests.

  8.  Built-in self-diagnostic function: the device can supervise self working conditions.

  9.  Intuitive instructions: all the buttons on the panel with indicators.

  10.  Long performance life: running time up to 3 hours, applies to field test of SF6 HV switch factories and research institute.

  11.  Strong anti-interference: fully shielded, eliminate the interference by external and the device.

  12.  High stability: the power and voltage with high stability, low temperature rise, less thermal losses, good thermal stability, with small null drift and range drift when testing.

  13.  Good repetitiveness: instrument repeatedly test, good repetitiveness.

  14.  High reliability: reasonable compact structure, adopts imported components, equipped with over-current, over-voltage protection.

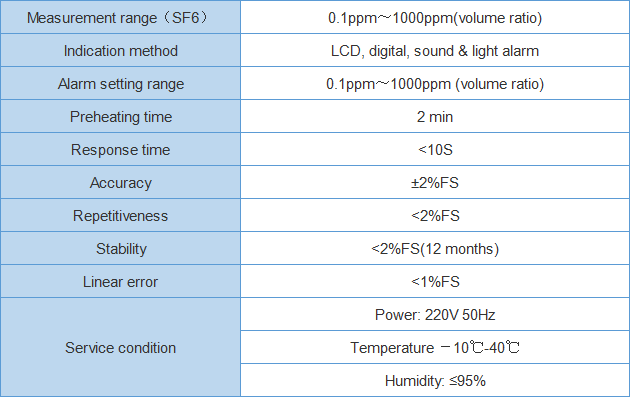

Ⅲ Parameters





FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
