HVJD-II SF6 Density Relay Tester

using pressure sensor with high accuracy and high speed A / D converter, with 32 bit high performance microprocessor can to check the performance of various SF6 gas density relay, accurate measurement of signal action when the temperature pressure value

Share:
Inquire Now

Product Description

HVJD-II SF6 Density Relay Tester



Ⅰ Introduction

The calibrator using pressure sensor with high accuracy and high speed A / D converter, with 32 bit high performance microprocessor can to check the performance of various SF6 gas density relay, accurate measurement of signal action when the temperature pressure value, automatically any temperature of 20 DEG C standard pressure conversion, and has printed, stored and U disk functions, and automatic recognition of faults in the process of testing. The product has the advantages of convenient carrying, simple operation, high test precision, strong stability and good reliability, and is characterized in that the instrument is "intelligent".


Ⅱ Features

1.High precision: the core components are imported devices, high integration, high precision, good repeatability, high reliability.
2. Highly intelligent: the calibration process without the constant temperature room, in any effective temperature range can test the SF6 gas density relay, pressure gauge. Pressure and temperature dynamic compensation algorithm is used to automatically complete the pressure measurement and 20℃ equivalent, completely solve the problem of SF6 gas density relay field calibration difficult.
3. Powerful: can test a set of alarm signals, two groups of blocking signals, and has the normal temperature pressure gauge and 20 degree pressure gauge calibration function.
4. Friendly man-machine interface: the configuration of large LCD screen and the rotation mouse human-machine interface, easy to operate, beautiful interface, all parameters and status at a glance. Test process automatically completed, without manual intervention, to avoid tedious manual gas path adjustment operation.
5. Transition joints: portable instrument, equipped with a variety of types of transition joints, most types of switch density relay calibration site without disassembly, it is the best choice for SF6 density relay calibration.
6. Less gas consumption: gas consumption is very small, without waste SF6 gas, test costs are low, no pollution.
7. Data storage: built-in memory, real-time storage test results, with power down data saved function, check and print the history of test data at any time.
8. Report printing: report forms print test result, and carries on the intelligence analysis to the test result.
9. Clock modification: with the function of online modification of the system clock.
10. U disk to save: support U disk to save the test data, read through the PC, easy and fast operation
11. PC software powerful: easy to operate, to achieve data analysis, save, print and generate test report, convenient for data centralized management

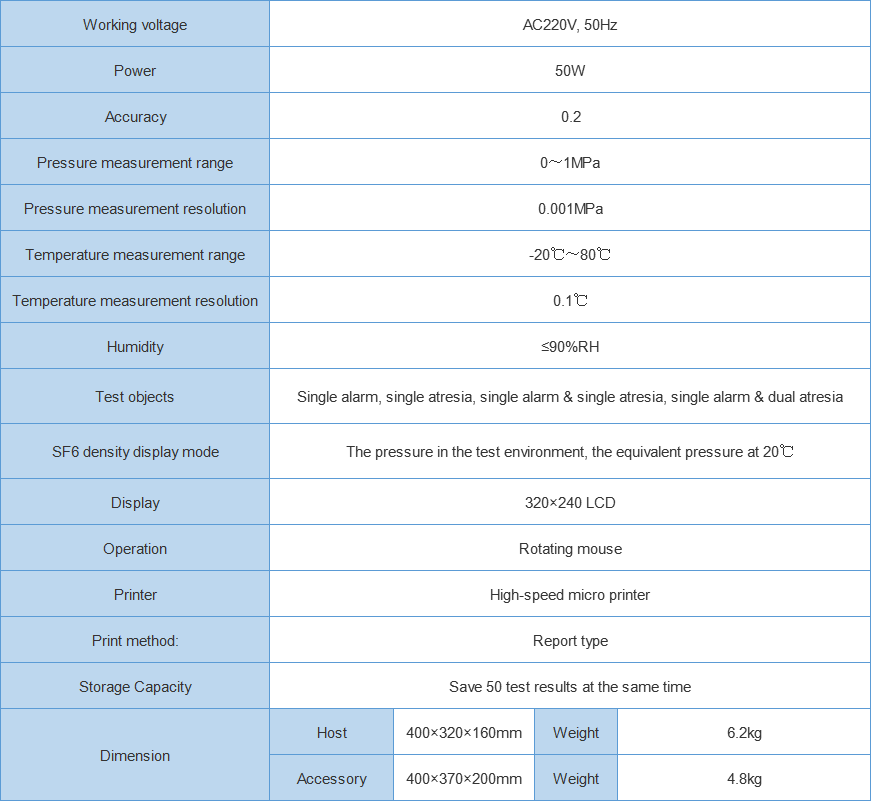

Ⅲ Parameters




FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
