HV2571-II Earth Resistance Tester

Uses advanced middle-large scale integrated circuits and applies DC/AC transformation technology to combine three-terminal measurement method and four-terminal measurement method into one model.

Share:
Inquire Now

Product Description

HV2571-II Earth Resistance Tester



Ⅰ Introduction

The instrument applies to power industry, post and telecommunications, railway, communications, mining and other sectors to measure the grounding resistance of the various devices and the conductor resistance of low resistance; this instrument can also measure soil resistivity and ground voltage.
The instrument is
 a newly developed earth resistance tester, which abandons the traditional way of generating electricity by hand operation, uses advanced middle-large scale integrated circuits and applies DC/AC transformation technology to combine three-terminal measurement method and four-terminal measurement method into one model.


Ⅱ Features

1.High-strength aluminum alloy shell body, the circuit equipped with phase locked loop and switched capacitor filter, based on which the instrument play an effective role in shielding power frequency and radio frequency interference.
2.DC/AC converter can transform DC current into AC low-frequency constant current for the measurement.
3. Auxiliary grounding resistance can change in the range of 0 ~ 1.8KΩ (RC), 0 ~ 40KΩ (RP), that will not affect measurement results.
4.Without manual adjustment to zero, with three and a half bits LCD display, the instrument can be used for measuring the grounding resistance, the conductor resistance of low resistance, soil resistivity and AC ground voltage. If tested loop encounter failure, the screen displays "1" indicating large range, which consistent with conventional measurement practices.

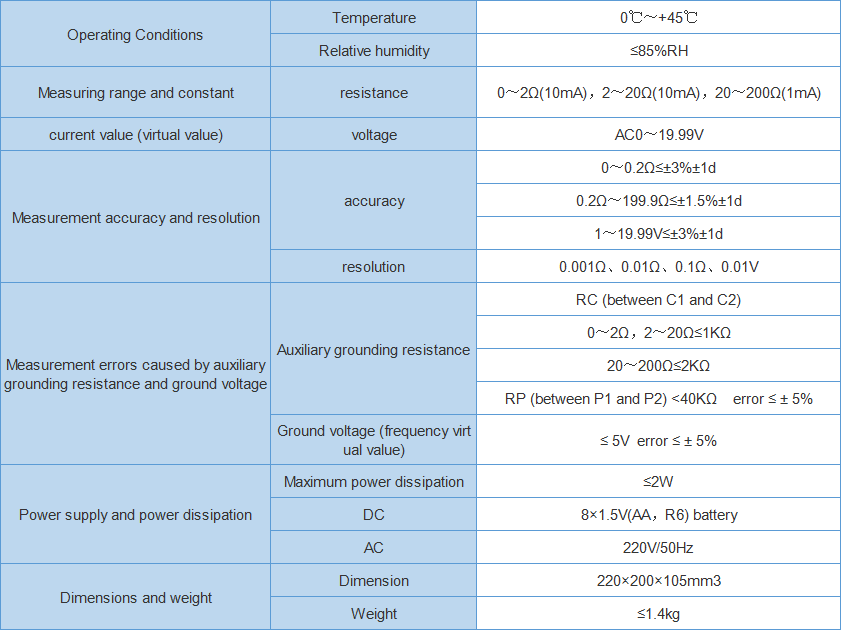

Ⅲ Parameters




FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Expressand your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
